Calibration Unit MICRO

  • Optimum preparation of the liner - for various pipe dimensions
  • Evenly distributes mixed resin throughout the length of the liner
  • Applicable with various rehabilitation packers.
  • Pressure monitoring by means of control valves and manometers

Buy Now

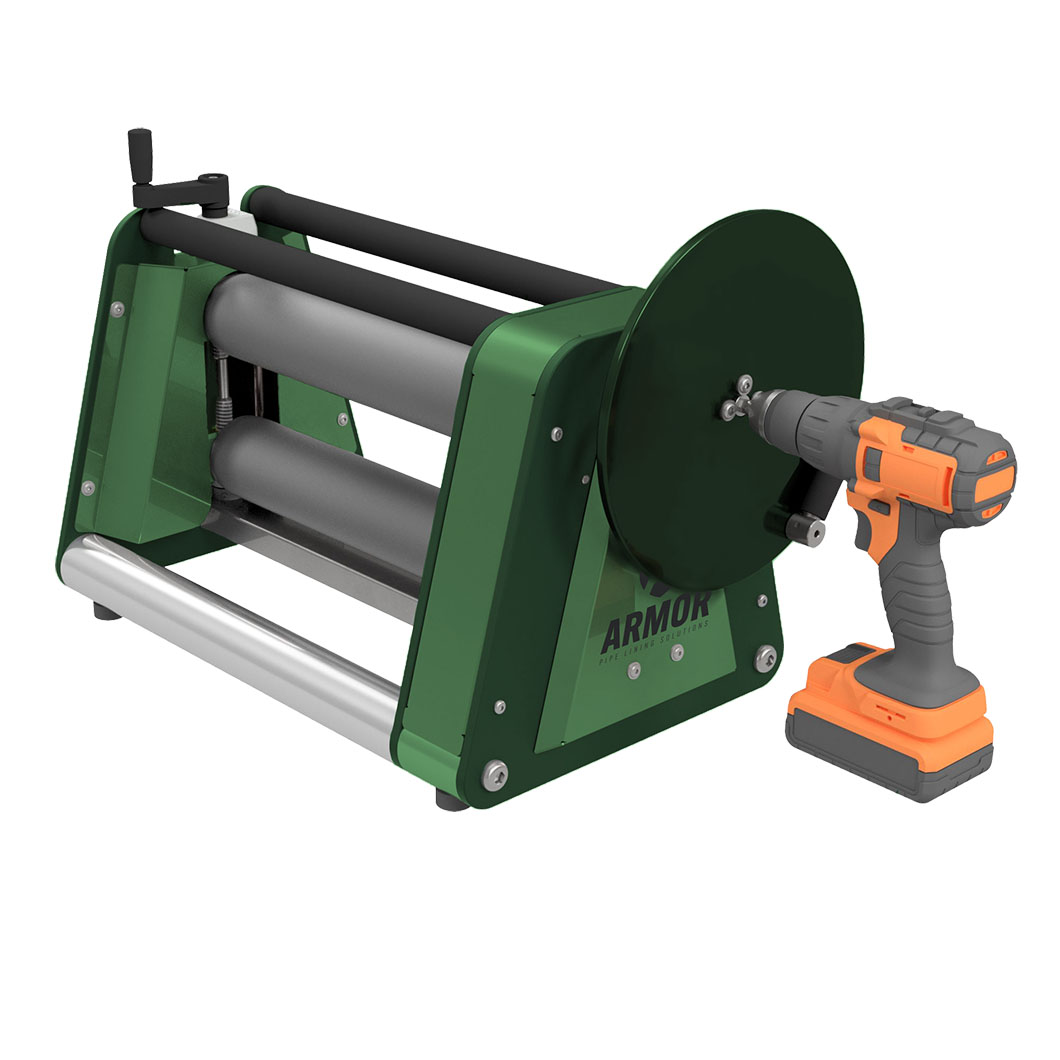

Easily Wet out your liner using the ergonomic hand wheel or connect a power drill.

Evenly Saturates liner with resin to prevent waste

Compact size fits on your truck and is jobsite friendly.

Product Description

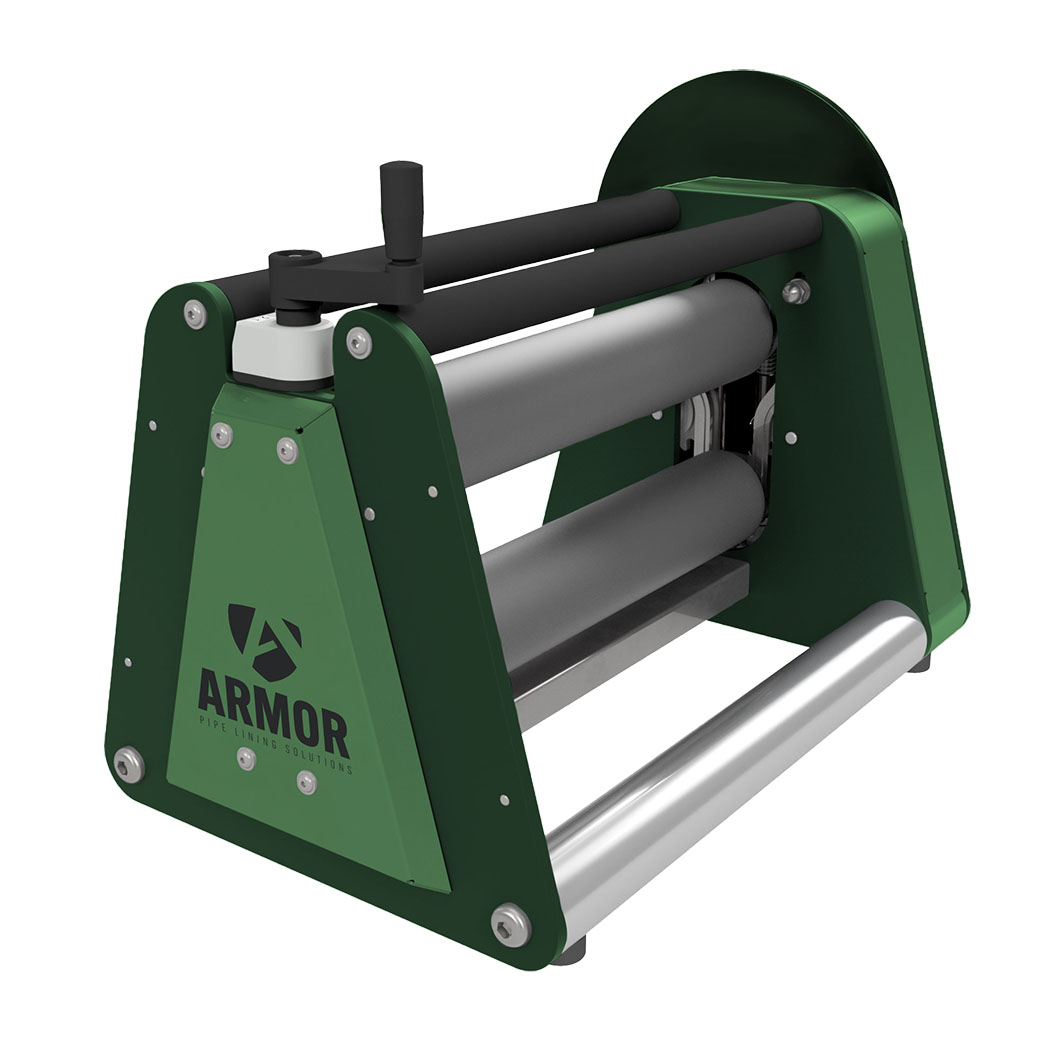

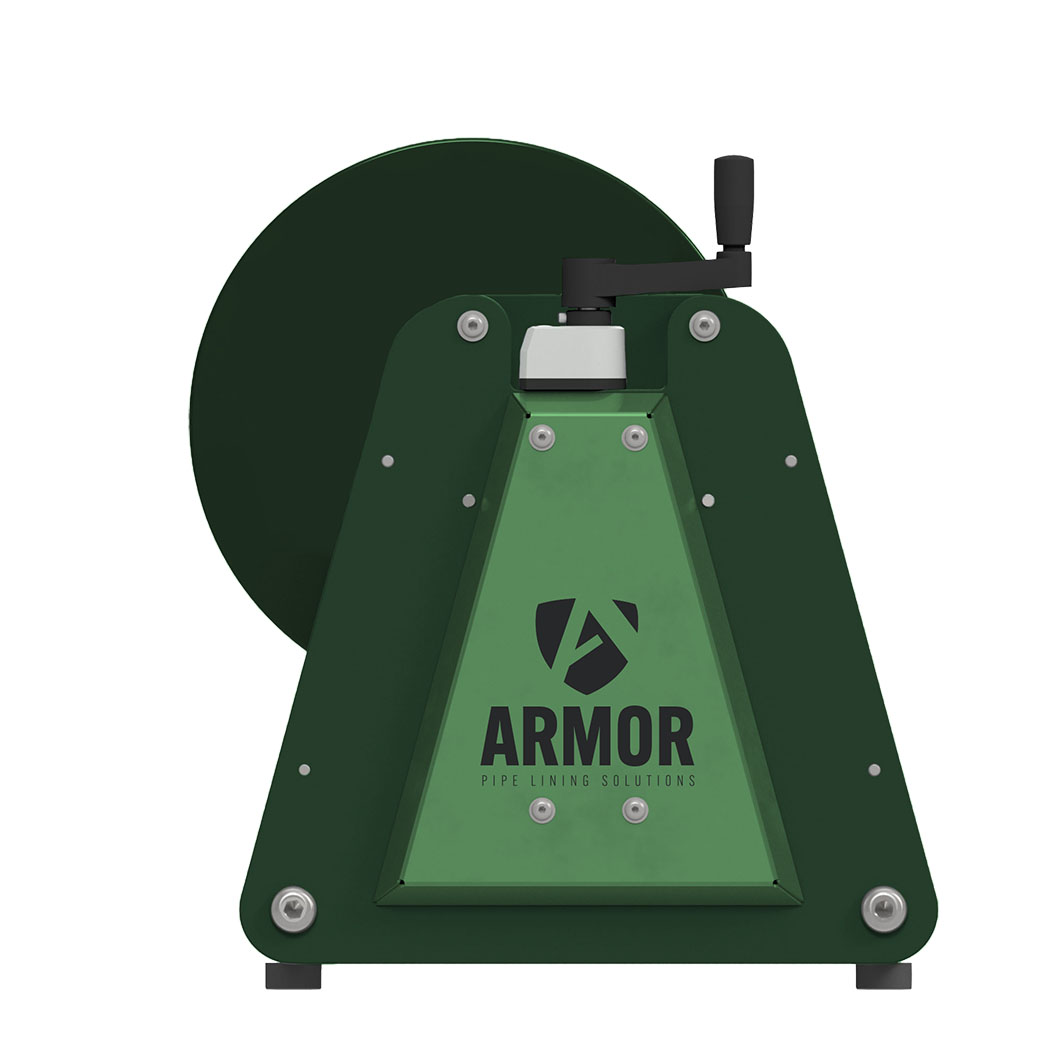

The Armor Micro Calibration Unit is a manual wet-out roller for liners up to 8” in diameter. This unit evenly distributes mixed resin throughout the length of the liner to reduce waste. An ergonomic hand wheel allows you to control the wet-out speed manually or you can use a power drill to make the process faster and easier

Lightweight and portable, this wet-out roller can be used anywhere on the jobsite, whether it’s in your truck or at the location of the repair.

Product Specifications

Weight

42 lbs

Size

22 x 13 x 15 in

Liner Dimensions

8 in.

Roller Table

None

Version

Mobile Version

Protective Cover

None

Roller Drive

  • Manually or with Cordless Drill
  • Height Adjustment

    Manually with Handle
